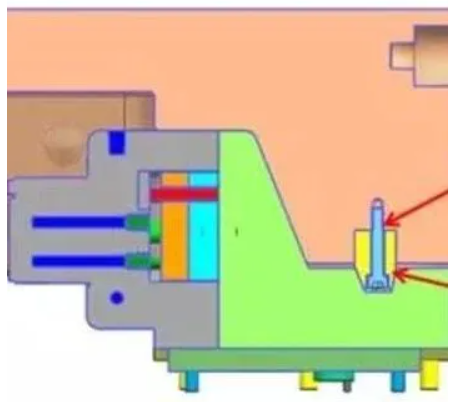

The guide pin--Precision component in mold design

In the design and manufacturing process of plastic injection molds, the guide pin is a key component to ensure accurate positioning and smooth opening and closing of the mold. We would like to share with you about the role of the guide pin and its design points and application in modern mold manufacturing.



The function of the guide pin

1. Precision positioning
The main function of the guide pin is to provide precise positioning for the movable mold and fixed mold during the opening and closing process of the mold.
2. Ensure consistency
Through the guidance of the guide pin, it can ensure the consistency of every closing in the mold and guarantee the product quality.
3. Reduce wear
The design of the guide pin helps to reduce the mold wear during mold opening and closing, which can extend the working life of the mold.
4. Simplify operation
The use of guide pin simplifies mold operation and improves production efficiency.

Design points of the guide pin
1. Material selection
Choose a material with suitable hardness and wear resistance, such as alloy steel or stainless steel.
2. Dimensional accuracy
The dimensional accuracy of the guide pin directly affects the positioning accuracy of the mold, so the tolerance needs to be strictly controlled.
3. Surface treatment
Appropriate surface treatment can improve the wear and corrosion resistance, such as chrome plating or nickel plating.
4. Fitting precision
The fitting precision between the guide pin and the mold needs to be precisely controlled to ensure smooth sliding and positioning.
5. Cooling system
Consider the cooling system requirements when designs the guide pin, in order to ensure the temperature control of the mold during the production.

Manufacturing process of the guide pin
1. Mechanical processing
Use high-precision mechanical processing technology, such as CNC lathes, grinders, etc.
2. Heat treatment
Heat treatment can improve the hardness and wear resistance of the guide pin.
3. Precision measurement
After manufacturing, use precision measuring tools to check size and shape.
4. Quality inspection
Strict quality inspection is carried out to ensure that each guide pin meets the design requirements.

The application of the guide pin
1. Plastic injection molds
In plastic injection molds, the guide pin is the standard configuration to ensure accurate positioning of the mold.
2. Compression mold
The guide pin is also used in compression mold to ensure mold alignment and consistency.
3. Blow mold
In blow molds, the guide pin helps to control the mold opening and closing and ensure product quality.
4. Multi-cavity mold: The use of guide pin is particularly important in multi-cavity molds to ensure the consistency and synchronization of each cavity.

Conclusion

As a precision component in mold design, the quality and performance of the guide pin are directly related to the whole performance and production efficiency of the mold. With the development of mold manufacturing technology, the design and manufacturing of the guide pin is also continuously innovating to meet the production needs of higher efficiency and higher precision. Mold manufacturers and designers need to continuously explore and apply new materials and technologies, so as to improve the performance of the guide pin and enhance the quality and competitiveness of the mold.
